- Brand: Supass
- Valve Type: Ball Valve
- Body Material: Brass (typically CW617N or equivalent for plumbing applications)
- Surface Finish: Nickel Plated
- Provides excellent corrosion resistance against water, mild chemicals, and atmospheric conditions.
- Offers an aesthetically pleasing and durable surface finish.
- Handle Type: Butterfly Handle (also known as a wing handle)
- Designed for ergonomic and efficient manual operation.
- Allows for quick and clear visual indication of the valve’s open or closed position (handle aligned with the pipe = open; handle perpendicular to the pipe = closed).
- Compact design, suitable for installations with limited space.
- Operation: Quarter-Turn (90 degrees)
- Requires only a 90-degree rotation of the handle to fully open or close the valve.
- Provides fast and reliable shut-off control.
- Connection Type: Threaded Ends (as visible in the image, typically NPT – National Pipe Thread – standard in the USA)
- Sizes Available:
- 1/2 inch (1/2″)
- 3/4 inch (3/4″)
- 1 inch (1″)
- 1-1/4 inch (1 1/4″)
- 1-1/2 inch (1 1/2″)
- Quality Assurance: The company has a top valve laboratory in China, equipped with domestic and foreign high-end testing equipment. It employs multiple full-time testing engineers with intermediate and senior professional titles to ensure rapid and accurate testing, meeting national and industry standards for product quality.
- Pressure Rating: (This will vary depending on the specific valve model from Supass. Common ratings include):
- PN20 (approx. 290 PSI)
- PN25 (approx. 362 PSI)
- Please refer to the specific Supass valve’s markings for its exact pressure rating.
- Temperature Range: (This will also vary depending on the valve’s seals and materials. Common ranges include):
- -20°F to +250°F (-29°C to +121°C)
- Please refer to the specific Supass valve’s specifications for its exact temperature range.
- Sealing Materials: (Common materials include):
- PTFE (Polytetrafluoroethylene) for the ball seats, offering excellent chemical resistance and a tight seal.
- EPDM or NBR for stem seals, providing reliable leak-proof performance.
- Applications:
- Plumbing systems (potable water, non-potable water)
- HVAC (heating, ventilation, and air conditioning) systems
- Compressed air lines
- Low-pressure hydraulic systems
- General industrial applications
- Irrigation systems
- Features:
- Durable brass construction.
- Corrosion-resistant nickel-plated finish.
- Easy-to-operate butterfly handle.
- Quick quarter-turn on/off control.
- Full port design (typically) for minimal flow restriction.
- Reliable sealing for leak-free performance.
- Available in common US standard NPT thread sizes.

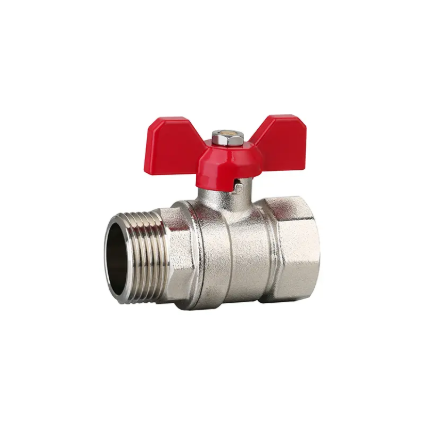

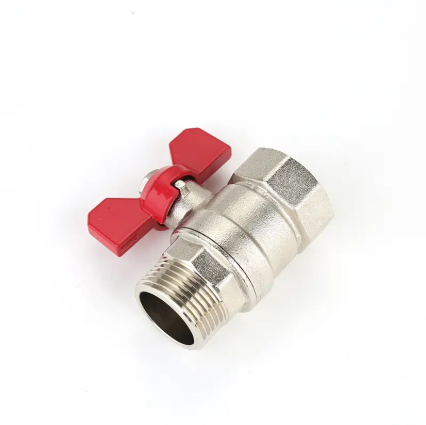

Supass Nickel-Plated Brass Ball Valve with Butterfly Handle
The Supass Nickel-Plated Brass Ball Valve with Butterfly Handle is a reliable and durable shut-off valve designed for a wide range of applications. Constructed from high-quality brass and featuring a corrosion-resistant nickel-plated finish, these valves offer excellent performance and longevity. The convenient butterfly handle allows for quick and easy quarter-turn operation, providing positive shut-off control. Available in a variety of common pipe sizes, these ball valves are an ideal choice for plumbing, HVAC, industrial, and general purpose use.
