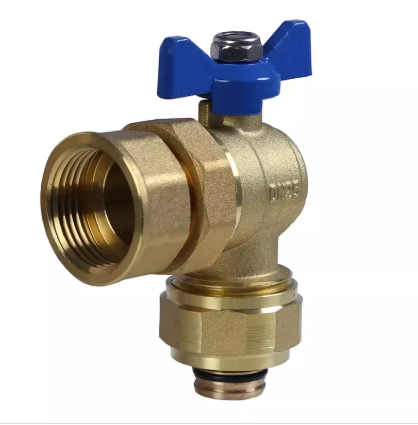

Supass High-Quality Brass Angle Stop Ball Valve with Butterfly Handle

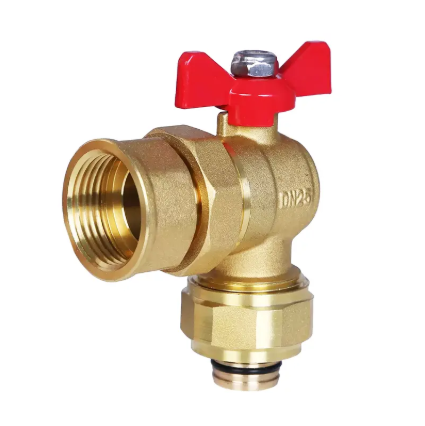

Supass High-Quality Brass Angle Stop Ball Valve with Butterfly Handle - Image 2

Supass High-Quality Brass Angle Stop Ball Valve with Butterfly Handle

The Supass Brass Angle Stop Ball Valve is a premium, full-flow shut-off solution engineered for reliability and durability. Featuring a robust nickel-plated brass body and a convenient butterfly handle, this valve offers superior performance in a wide range of applications. Its precision manufacturing ensures leak-free operation and long service life. Available in various common sizes, it’s an ideal choice for controlling water flow in residential, commercial, and industrial settings.

  • Brand: Supass
  • Item: Brass Angle Stop Ball Valve
  • Warranty: 3 Years
  • Type: Ball Valve, Angle Valve
  • Customization Support: OEM, ODM, OBM
  • Place of Origin: Zhejiang, China
  • Model: Brass Angle Ball Valve
  • Medium Temperature: Normal Temperature
  • Power: Manual
  • Media: Water (Cold and Hot Water)
  • Port Size: DN25 (also available in 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″)
  • Structure: Ball
  • Material: Brass
  • Surface Treatment: Sandblasted (for parts), Nickel Plated (overall finish)
  • Feature: Threaded Standard Diameter
  • Working Pressure: Max 1.6Mpa
  • Temperature Range: 20°C to +120°C
  • Handle: Butterfly Aluminum Alloy Handle
  • Standard or Nonstandard: Standard

Key Component Specifications:

  • Brass Valve Body: Manufactured through high-density forging, ensuring no bubbles, no blowholes, and no leakage. Produced with specialized high-precision CNC machine tools.
  • Brass Valve Bonnet/Cap: High-density forged, guaranteeing no sand holes, no blowholes, and no leakage. Also manufactured using special high-precision CNC machine tools.
  • Valve Ball: Smooth and wear-resistant, providing excellent sealing performance.
  • Brass Valve Stem: Made from hot-rolled brass, offering high tensile strength and good toughness, preventing deformation and fracture during long-term use.
  • Ball Seat: Constructed from pure PTFE (Polytetrafluoroethylene), ensuring high elasticity and wear resistance, and slow aging.
  • Handle: Aluminum alloy T-type butterfly handle with professional surface painting for wear resistance and corrosion protection. Features a compact appearance and flexible opening/closing.
  • O-rings: Made from NBR & FKM using imported raw materials, offering a small friction coefficient, long service life, and excellent leak prevention.
  • Stainless Steel Locknut: Features an internal anti-loosening design for long-term use.

Function of Brass Ball Valves:

A brass ball valve, with its opening and closing part (the ball) driven by the valve stem, rotates around the axis of the ball valve. It can be utilized for fluid regulation and control. In situations with significant shear forces between the V-type ball and the hard-sealed V-type ball valve’s hard-faced metal seat, it is particularly suitable for media containing fibers and fine particles.

In piping systems, multi-way ball valves can not only flexibly control the confluence, diversion, and flow direction switching of media but also close one channel to connect the other two channels. These valves generally should be installed horizontally in the pipeline.

According to the transmission method, ball valves are divided into: pneumatic ball valves, electric ball valves, and manual ball valves. For brass ball valves, this product can cut off fluid in pipelines, making it an excellent choice when switching is required. Furthermore, the product’s role in conveying media is also prominent during use. When actually using this product, users should note that if the direction of the medium needs to be changed, this product also serves as an important tool. It also constitutes a crucial part of the flow regulation process for better analysis.
