- Brand: SUPASS
- Material: Brass

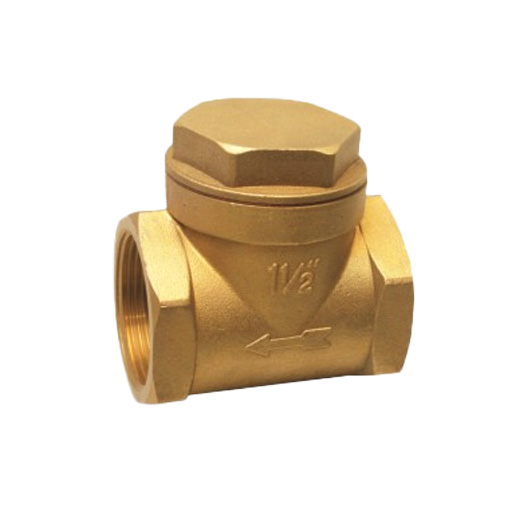

- Function: Check Valve (prevents backflow)
- Installation: Designed for horizontal installation, indicated by the arrow on the valve body.
- Connection Type: Female Threaded Ends
- Sizes Available: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
- Applications:
- Water supply systems
- Pumping systems
- Hydronic heating and cooling systems
- Industrial processes
- Any application requiring prevention of reverse flow in horizontal pipelines.
- Advantages:
- Durable brass construction for longevity and corrosion resistance.
- Automatic operation based on pressure differential.
- Ensures reliable one-way fluid flow, protecting system integrity.
General Information on Check Valves:
A check valve is a type of valve that allows fluid to flow in only one direction. They are commonly found in various systems, including plumbing, HVAC, and industrial processes, to prevent backflow which could damage equipment or contaminate the fluid. Unlike other valves that require external operation (like ball valves with handles), check valves operate automatically based on pressure differential. When fluid pressure on the inlet side exceeds the pressure on the outlet side, the valve opens; when pressure on the outlet side becomes higher, or flow stops, the valve closes to prevent reverse flow.
