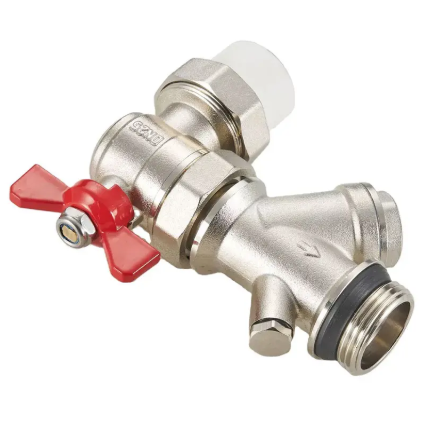

SUPASS Angle Joint Multi-function Filter Ball Valve for Underfloor Heating Manifolds

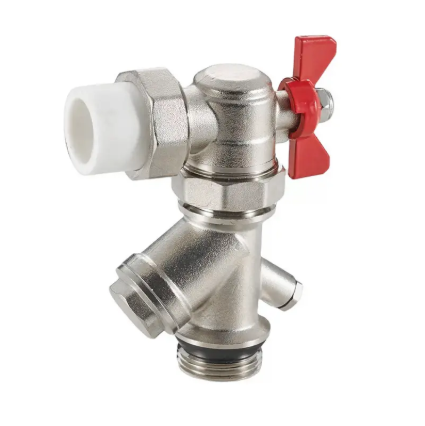

SUPASS Angle Joint Multi-function Filter Ball Valve for Underfloor Heating Manifolds - Image 2

SUPASS Angle Joint Multi-function Filter Ball Valve for Underfloor Heating Manifolds

The SUPASS Angle Joint Multi-function Filter Ball Valve is a specialized and widely applied valve designed for underfloor heating manifold systems and other pipe connections. This PPR brass ball valve features excellent wear resistance, reliable sealing performance, and a long service life. Its unique design, including a filter function and easy quarter-turn operation, makes it an ideal choice for controlling water flow in various demanding applications, from general plumbing to industrial settings.

  • Brand: SUPASS
  • Material: Stainless Steel, Brass, Forged
  • Valve Type: Ball Valve, Pipe Fittings
  • Application: General, Pipe Connection
  • Media: Water
  • Structure: Ball
  • Power: Hydraulic
  • Medium Temperature: Normal Temperature
  • Standard: Industrial Grade
  • Usage: Connecting pipes
  • Warranty: 1 Year
  • Customization Support: OEM, Other
  • Sizes Available: 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch, 2 1/2 inch, M1″*25PPR, M1″*32PPR

Key Features and Characteristics of PPR Brass Ball Valves:

  • Excellent Wear Resistance: The valve core of hard-sealed ball valves is spray-welded with alloy steel, and the sealing ring is hard-faced with alloy steel, minimizing wear during opening and closing.
  • Reliable Sealing Performance: The seal of PPR brass ball valves is manually ground, ensuring that the valve core and sealing ring are perfectly matched before use, providing reliable sealing.
  • Light Operation: The bottom of the sealing ring in PPR brass ball valves features a spring that tightly secures the sealing ring to the valve core. This design ensures light operation even when external force exceeds the spring’s pre-tightening force.
  • Long Service Life: PPR brass ball valves have a long service life.
  • Wide Application: These valves are widely used across various sectors including petroleum, chemical, power generation, papermaking, atomic energy, aviation, rockets, and daily life.

General Function of Brass Ball Valves:

A brass ball valve’s opening and closing component (the ball) is driven by the valve stem, rotating around the ball valve’s axis. It can also be used for fluid regulation and control. In cases with significant shear forces between the V-type ball of a hard-sealed V-type ball valve and its hard-faced alloy metal valve seat, it is particularly suitable for media containing fibers, fine particles, or solid particles. In pipelines, multi-way ball valves can not only flexibly control the confluence, diversion, and flow direction switching of media but also close one channel to connect the other two. These valves should generally be installed horizontally in the pipeline. Ball valves are categorized by their transmission mode into pneumatic, electric, and manual ball valves. This product, as a brass ball valve, can effectively cut off fluid in pipelines, making it an excellent choice for switching operations. Its role in media transmission is also prominent. It is also an important component for flow regulation when the direction of the medium needs to be changed.
